77H1S
Wall Range Hood, 895mm, Side Draft
- 1440m³/h Airflow rate
- 18cm ultra-slim design
- Auto-adjust speed control with bldc motor
- 9-speed control
- No need to disassemble, easy to clean
- Turbo-Tech, 40% bigger impeller creates incredible airflow rate
- Waving control
- 1440m³/h Airflow rate
- 18cm ultra-slim design
- Auto-adjust speed control with bldc motor
- 9-speed control
- No need to disassemble, easy to clean

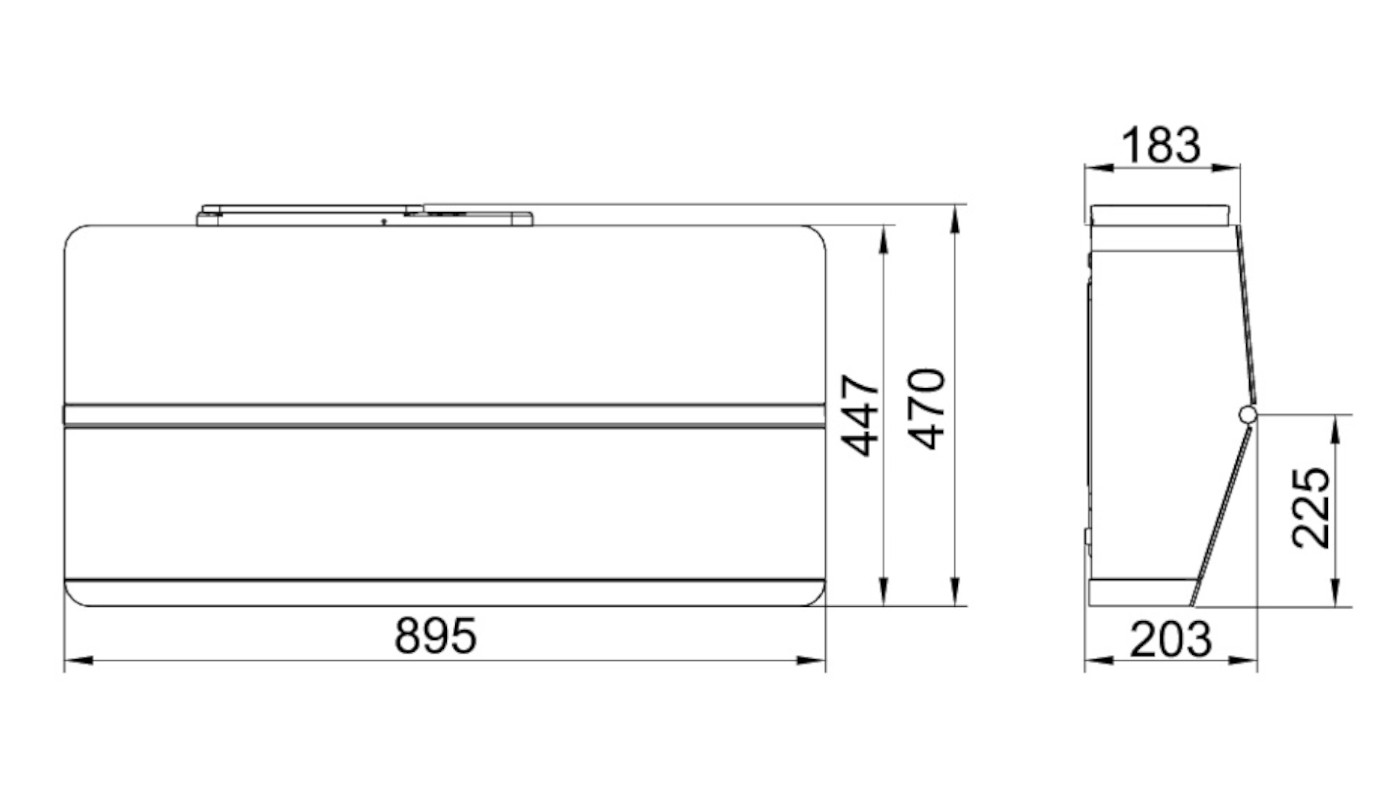

Width
895mm
Depth
203mm
Height
470mm
Ultra-Slim Range Hood - 77H1S
The upper and lower parts are ultra-slim, which is really close to the breath. Ultra-slim top: 90% more cabinet space, ultra-slim bottom: 18cm ultra-slim body, really close smoking: the bottom turbine releases 1440m³/h (24m³/min) smoking effect.
Closer to Cooking Fumes, Exhaust Fumes Swiftly
By positioning the motor and duct below, and lowering the power source by 36cm, we effectively reduce the distance to the fumes source by 41%, ensuring the complete elimination of any escape of oil fumes.
Turbo-Tech Power System
40% Bigger impeller creates incredible airflow rate, increase the impeller to 32cm, achieving a 40% larger size compared to traditional impellers and generating a powerful airflow of 1440m³/h (24m³/min) .
Auto-Adjust Speed Control
Experience the pinnacle of efficiency with our G4 intelligent sensing chip. Seamlessly adjusting suction power in real-time to match duct air resistance, it guarantees consistent, top-tier performance with maximum airflow and pressure.
18cm Ultra-Slim Design
Experience the freedom of cooking with our ultra-slim 19cm design, expanding your cooking view and enhancing your cooking journey. Liberate over 70% of your cabinet space to store even more kitchen essentials.
Waving Control
Touchless design keeps things smart and simple to use. Wave your hand to turn it on and off, change the airflow, and make your kitchen life that much smarter.
BLDC Motor
Equipped with a BLDC motor, our range hood intelligently adjusts the fan speed upon detecting resistance in airflow. This smart adjustment feature guarantees the range hood operates at the ideal suction level, simultaneously enhancing energy utilization efficiency and cost-effectiveness.
9-Speed Control
We provide you versatile airflow adjustment with 9 suction levels, tailored to your cooking needs. Efficiently clears oil fumes, enhancing your kitchen experience.
Switchable Warm and Cool Lighting
Seamlessly switch between warm and cool lighting to create the ideal ambiance in your kitchen. Whether you're preparing a gourmet meal or whipping up a quick snack, our range hood lighting ensures you have the perfect illumination at your fingertips.
Easy to Clean
Exclusive A++ filter that separates 91% of oil and grease. With non-stick coating, the inside cavity is prevent the build up of grease, free from disassemble and is easily to clean.
Specifications
- Width
- 895mm
- Height
- 470mm
- Depth
- 203mm
Features
| 18cm ultra-slim design |
| 9-speed control |
| No need to disassemble, easy to clean |
| Auto-adjust speed control with bldc motor |
| Turbo-Tech, 40% bigger impeller creates incredible airflow rate |
| Waving control |
Specification
| Model No. | : | CXW-260-77H1S |
| Product Size | : | 895x203x470mm (WxDxH) |
| Rated Main Motor Power Input | : | 260W |
| Max Airflow | : | 1440m³/h |
| Max Static Pressure | : | 1000Pa |
| Noise | : | ≤ 53dB(A) |
| Parts and labor Warranty | : | 2 years |
Installation
Check with your local retailer for pricing, availability and stock of this model. The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with your retailer or Robam's Customer Care Centre to ensure this page correctly describes the model currently available.
